The scenario library

A library is a dictionary of shared variables plus scenarios, one clinical question each. The built-in one is in the module (inst/library/); teachers can write their own in YAML or Excel. The full format is in schema.md.

The Library analysis

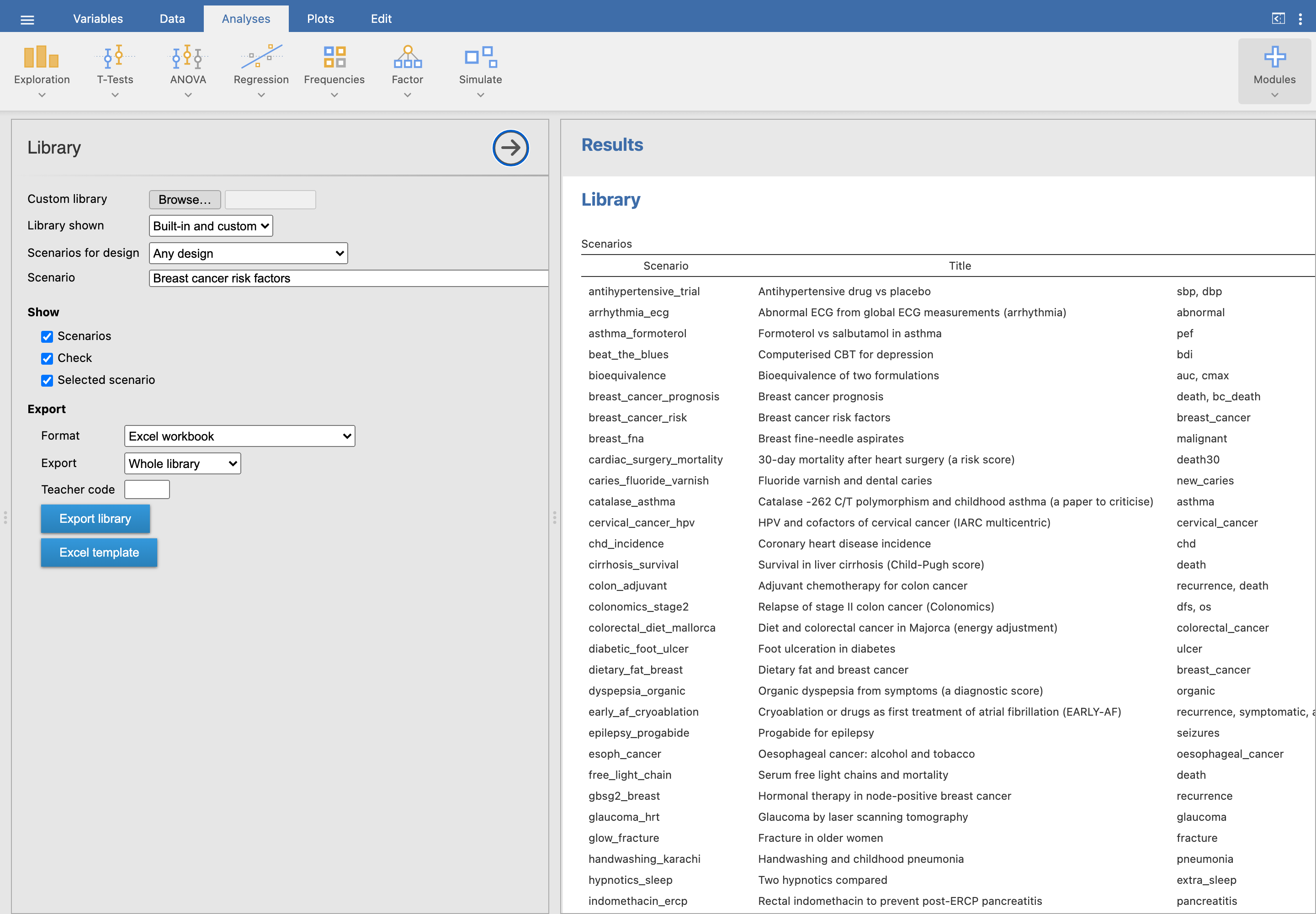

Simulate ▸ Library: scenarios, check, and one scenario’s variables, effects and structure.
  • Browse… reads a custom library (.yaml, .xlsx, .json or a .zip of them); Library shown chooses built-in, custom or both.
  • Scenarios for design lists only the scenarios with an outcome that fits a design.
  • Check lists problems in plain language, located by scenario and field.
  • Export library writes the library or one scenario as Excel, JSON or zipped YAML; Excel template gives a workbook with a worked example and the format.
  • The Simulated study pickers read custom libraries in JSON; export a YAML or Excel library as JSON here to use it there.

A scenario in brief

id: breast_cancer_risk
label: {en: Breast cancer risk factors, es: Factores de riesgo de cáncer de mama}
variables:
  age: {from: dictionary, dist: "uniform(35, 75)"}
  menarche: {type: continuous, dist: normal(12.6, 1.4), range: [9, 17], round: 0}
  menopause:
    type: binary
    levels: [pre, post]
    p: plogis((age - 51) / 1.5)          # rule: menopause depends on age
  hrt:
    type: binary
    p: 0.25
    levels: [never, ever]
    only_if: menopause == "post"         # structural value
    otherwise: never
structure:                                 # latent paths among variables
  - [age, parity, 0.25]
outcomes:
  breast_cancer:
    type: event
    rate: 2.5/1000
    designs: [case_control, matched_cc, cohort]
    effects:
      age: {HR: 1.04, per: 1}
      bmi: {HR: 1.12, per: 5, by: {menopause: {pre: 0.93, post: 1.12}}}
null_variables: [education, coffee]
teaching: {en: "Age confounds parity and menopause...", es: "..."}
  • Variables: continuous (normal, log-normal, gamma, beta, uniform), counts (Poisson, negative binomial), binary, nominal, ordinal and genotypes.
  • Structure and correlations among variables, and rules: a probability that depends on other variables, structural values (only_if/otherwise) and formulas for derived variables.
  • Outcomes: binary (prevalence), events (rate, risk or median; Weibull shape), continuous (also on the log scale) and counts, each with conditional effects (OR, HR, RR, ratio, beta), effect modification (by:, centred at the population mean of the variable unless center: says otherwise) and interventions for trials; diagnostic markers with an AUC, a cutoff, a dependence on covariates (depends:) or on disease severity (severity_sd).
  • Translations: labels in several languages, and an i18n: section with the column names and category labels students see.
  • A lock: typed in Teacher code before exporting, it locks the exported library; while it is loaded, the answer key, the true values and the effects need the same code (a deterrent: the file itself holds the parameters).
