A logistic prediction model

The 10-year risk of a cardiovascular event: descriptives, effects, performance with bootstrap optimism correction, calibration, stability, sample size and clinical utility.

Question. Can routine clinical data — age, sex, smoking, blood pressure, cholesterol, body mass index and diabetes — predict which patients of the heart cohort will have a cardiovascular event within 10 years? How good would the predictions be in new patients of the same population, and would they help to decide whom to treat?

Step 1: the panel

Open the heart cohort (☰ → Open → Data Library → Clinical Prediction Models → Heart cohort, simulated) and Prediction → Binary Outcome (Logistic). Set:

Panel Setting
Outcome event10; Event level yes
Covariates (linear) sbp, chol, bmi
Covariates (spline) age (4 knots)
Factors sex, smoking, diabetes
Reference Levels smoking: never
Covariate Scaling sbp: per 10 units
Validation Internal validation: Bootstrap, 200 samples; Prediction stability
Model Descriptive table; Effects: crude and adjusted; Likelihood ratio tests; Model equation; Sample size adequacy
Clinical Utility Classification at a threshold of 0.2; Decision curve
Plots Calibration plot, ROC curve, Risk distribution
Options Explanations

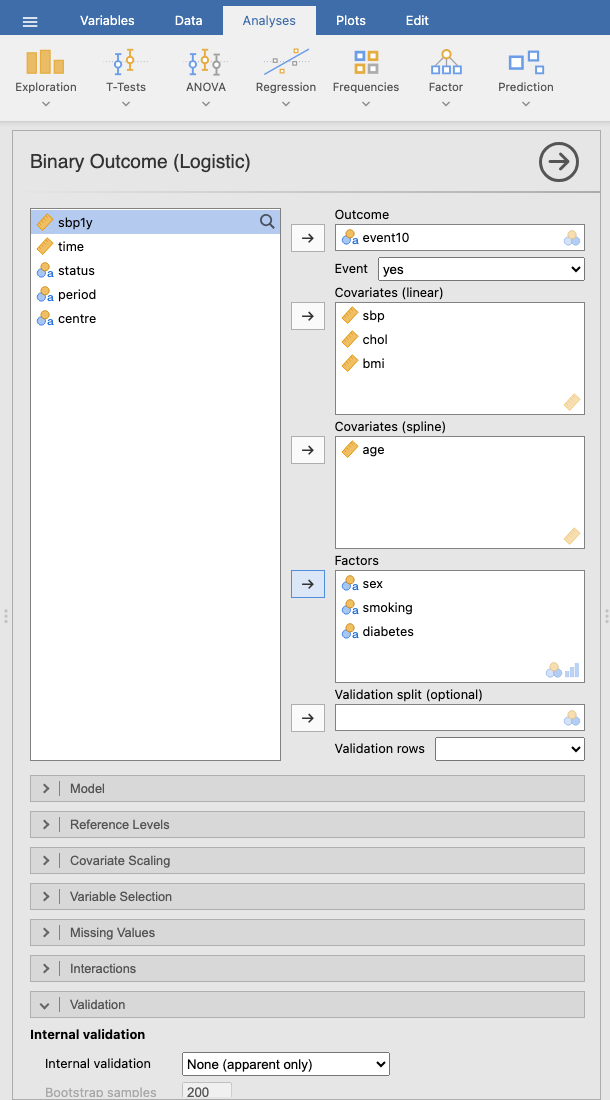

Figure 1: Prediction → Binary Outcome (Logistic) in jamovi with the variables of this example; the collapsed sections below hold the other options of the table.

Age enters as a restricted cubic spline: a smooth curve instead of a straight line on the log-odds scale, because there is no reason to assume that each year adds the same risk. Systolic pressure is scaled per 10 mmHg so that its odds ratio is readable.

R syntax
r <- cpLogistic(data = heart, dep = "event10", eventLevel = "yes",
                covs = c("sbp", "chol", "bmi"), splineVars = "age", knots = 4,
                factors = c("sex", "smoking", "diabetes"),
                refLevels = list(list(var = "smoking", ref = "never")),
                covScales = list(list(var = "sbp", scale = "ten")),
                validation = "boot", nBoot = 200, seed = 1, stability = TRUE,
                descTable = TRUE, oddsRatios = TRUE, crude = TRUE, predTests = TRUE,
                equation = TRUE, sampleSize = TRUE, classif = TRUE, threshold = 0.2,
                dca = TRUE, calPlot = TRUE, rocPlot = TRUE, riskPlot = TRUE, explain = TRUE)

Step 2: the data

Data

Data set N Events % Excluded (missing)
Development 2292 358 15.6 % 108
Note. Event: event10 = yes. Rows with a missing outcome or predictor are excluded (complete-case analysis).

2292 patients have every variable; 108 were excluded for a missing value (cholesterol or body mass index). Complete-case analysis is acceptable when, as here, few values are missing; the missing data example treats them properly. With 358 events the model has about 36 events per candidate parameter (10 parameters: 1 each for sbp, chol and bmi, 3 for the spline of age, 1 for sex, 2 for smoking, 1 for diabetes).

Descriptives (Development Data)

no yes Total Missing
Patients n 2031 369 2400
sbp mean (SD) 119.56 (15.58) 124.92 (15.56) 120.38 (15.70) 0
chol mean (SD) 5.48 (0.99) 5.70 (1.05) 5.52 (1.01) 40
bmi mean (SD) 26.98 (4.52) 27.65 (4.37) 27.08 (4.50) 70
age mean (SD) 59.71 (9.73) 62.17 (10.20) 60.08 (9.84) 0
sex female 1024 (50.4%) 147 (39.8%) 1171 (48.8%) 0
male 1007 (49.6%) 222 (60.2%) 1229 (51.2%)
smoking never 1053 (51.8%) 155 (42.0%) 1208 (50.3%) 0
former 626 (30.8%) 102 (27.6%) 728 (30.3%)
current 352 (17.3%) 112 (30.4%) 464 (19.3%)
diabetes no 1893 (93.2%) 316 (85.6%) 2209 (92.0%) 0
yes 138 (6.8%) 53 (14.4%) 191 (8.0%)
Note. Development rows, before excluding missing values; percentages of the non-missing values.

The descriptive table compares patients with and without the event: those with an event were older, more often men, smokers and diabetic, with higher blood pressure and cholesterol.

Step 3: the effects

Odds Ratios

Crude Adjusted
OR Lower Upper p OR Lower Upper p
sbp per 10 units 1.24 1.153 1.33 < .001 1.19 1.106 1.29 < .001
chol per unit 1.23 1.102 1.37 < .001 1.27 1.133 1.42 < .001
bmi per unit 1.03 1.007 1.06 .013 1.02 0.993 1.05 .157
age Q3 vs Q1 (66 vs 53) 1.14 0.836 1.55 < .001 1.01 0.736 1.39 .011
sex female 1.00 < .001 1.00 < .001
male 1.58 1.254 1.99 < .001 1.59 1.256 2.02 < .001
smoking never 1.00 < .001 1.00 < .001
former 1.09 0.830 1.44 .531 1.12 0.846 1.48 .432
current 2.18 1.652 2.87 < .001 2.19 1.650 2.91 < .001
diabetes no 1.00 < .001 1.00 < .001
yes 2.22 1.566 3.14 < .001 2.18 1.510 3.15 < .001
Note. Crude: each predictor alone, on the same rows. Adjusted: in the prediction model.
Note. Spline predictors: odds ratio between the third and the first quartile; the p is the likelihood ratio test of the whole (non-linear) association.
Note. The p on a factor's reference row is the likelihood ratio test of the factor.

The crude odds ratios come from each predictor alone; the adjusted ones from the prediction model. Each 10 mmHg of systolic pressure multiplies the odds of an event by 1.19 (adjusted), current smoking by 2.19 compared with never smoking, diabetes by 2.18.

The spline of age is summarised by the odds ratio between its third and first quartile: 1.14 crude but only 1.01 adjusted. That looks odd for the strongest risk factor of cardiovascular disease — the selection example shows why (an interaction with sex).

In a prediction model these odds ratios are a description, not the result. The result is the risk they produce, and the question is whether it is accurate.

Likelihood Ratio Tests

Term χ² df p
sbp 20.75 1 < .001
chol 16.82 1 < .001
bmi 2.00 1 .157
age 11.16 3 .011
age: non-linear 4.62 2 .099
sex 15.06 1 < .001
smoking 29.72 2 < .001
diabetes 15.94 1 < .001
Note. Each test drops the term from the model (a predictor with its non-linear and interaction terms).

The likelihood ratio tests drop each predictor (all its terms) from the model. The non-linear part of the age spline has p = 0.099; body mass index adds little (p = 0.157). Keeping weak predictors that were chosen beforehand is fine: dropping them on their p-value would add selection to the optimism.

Step 4: performance and optimism

Performance in the Development Data

95% CI
Measure Apparent Lower Upper Optimism Corrected
Discrimination C-statistic (AUC) 0.6794 0.649 0.708 0.01177 0.66765
Discrimination slope 0.0588 0.00442 0.05439
Calibration Calibration-in-the-large 0.0000 -0.116 0.116 -0.00626 0.00626
Calibration slope 1.0000 0.820 1.180 0.06073 0.93927
O/E ratio 1.0000 0.909 1.100 -0.00645 1.00645
ICI 0.0110 -0.00010 0.01107
E50 0.0108 0.00063 0.01014
E90 0.0181 -0.00066 0.01871
Emax 0.1711 0.00724 0.16385
Overall Brier score 0.1243 0.115 0.134 -0.00179 0.12611
Scaled Brier score 0.0568 0.00931 0.04747
Nagelkerke R² 0.0918 0.01375 0.07809
Cox–Snell R² 0.0532 0.00786 0.04537
Note. Bootstrap optimism correction (Harrell): 200 samples (200 usable); corrected = apparent − optimism.
Note. AUC: probability that a random event has a higher predicted risk than a random non-event (0.5 = no discrimination). Calibration-in-the-large: 0 is ideal (log-odds). Calibration slope: 1 is ideal; below 1 the predictions are too extreme (overfitting). O/E: observed / expected events. ICI, E50, E90, Emax: mean, median, 90th percentile and maximum absolute difference between the predicted and the (smoothed) observed risk. Brier: mean squared error of the predicted risks (lower is better); scaled Brier: 1 − Brier / Brier of a model without predictors.

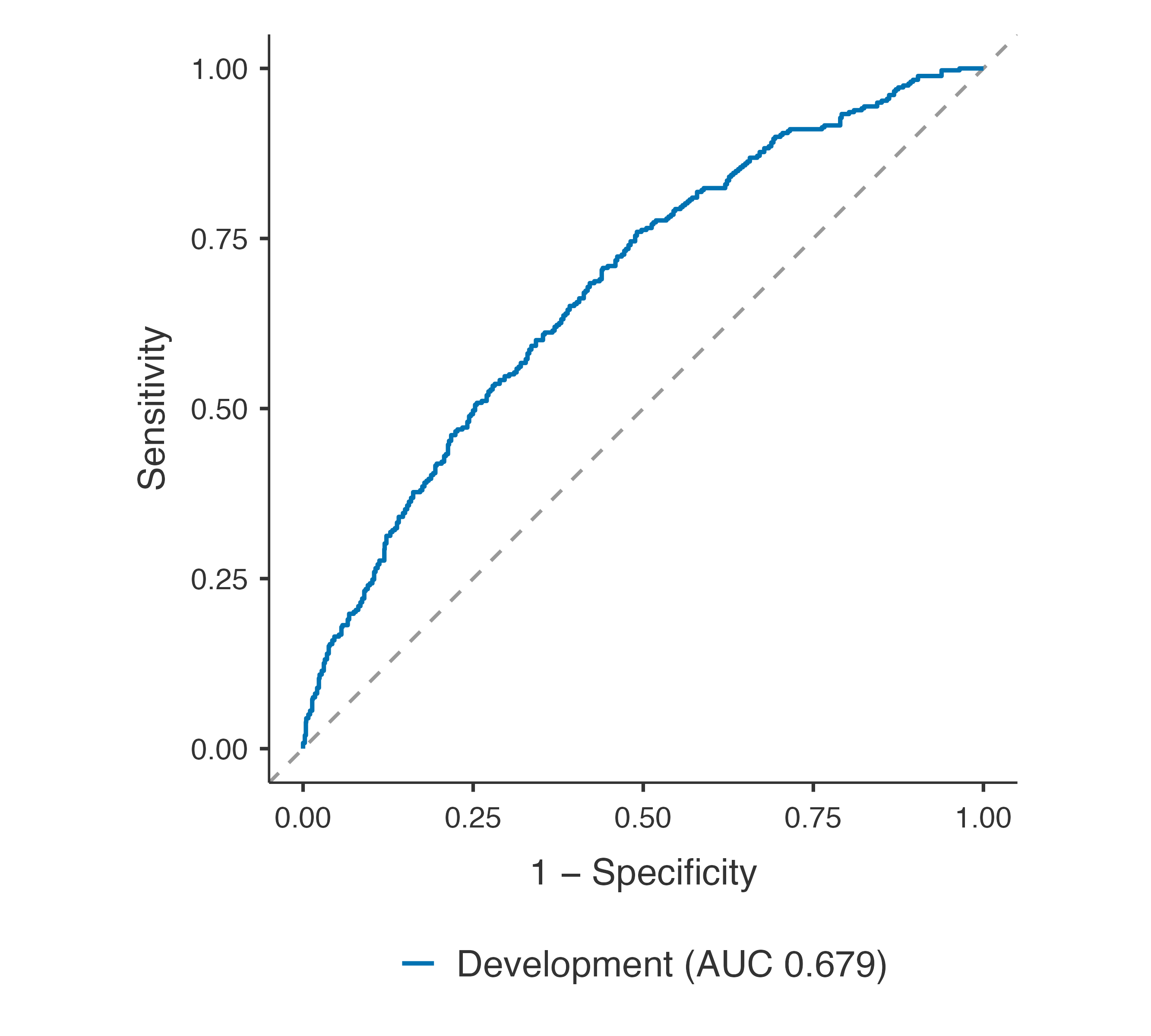

Discrimination. The apparent C-statistic is 0.679 (95% CI 0.649–0.708); after bootstrap correction for optimism, 0.668. That is modest, as for most models built on a few routine variables.

Calibration. In the development data calibration-in-the-large is 0 and the slope 1 by construction. The bootstrap estimates that in new patients the slope would be 0.939: the predictions are slightly too extreme. The ICI says the predicted risks are on average 1.1 percentage points from the observed ones.

Overall. The scaled Brier score, 0.047 after correction, means the model explains only a small part of the variation in individual outcomes — again usual for a cardiovascular risk model.

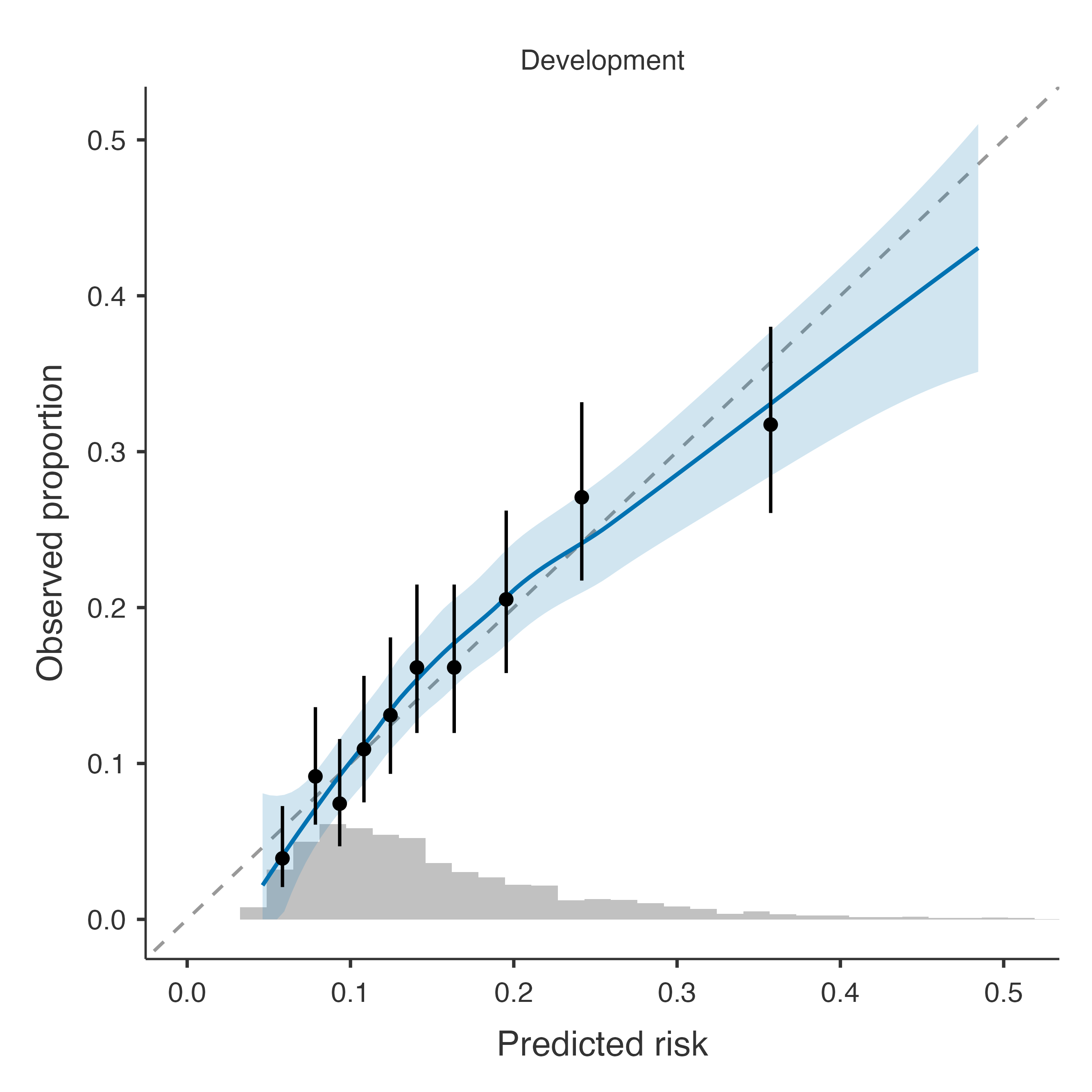

The calibration plot shows the smoothed observed proportion against the predicted risk (with its confidence band), observed proportions in tenths of the predicted risk, and the distribution of predictions at the bottom. In the development data it hugs the diagonal; the honest test is in new patients.

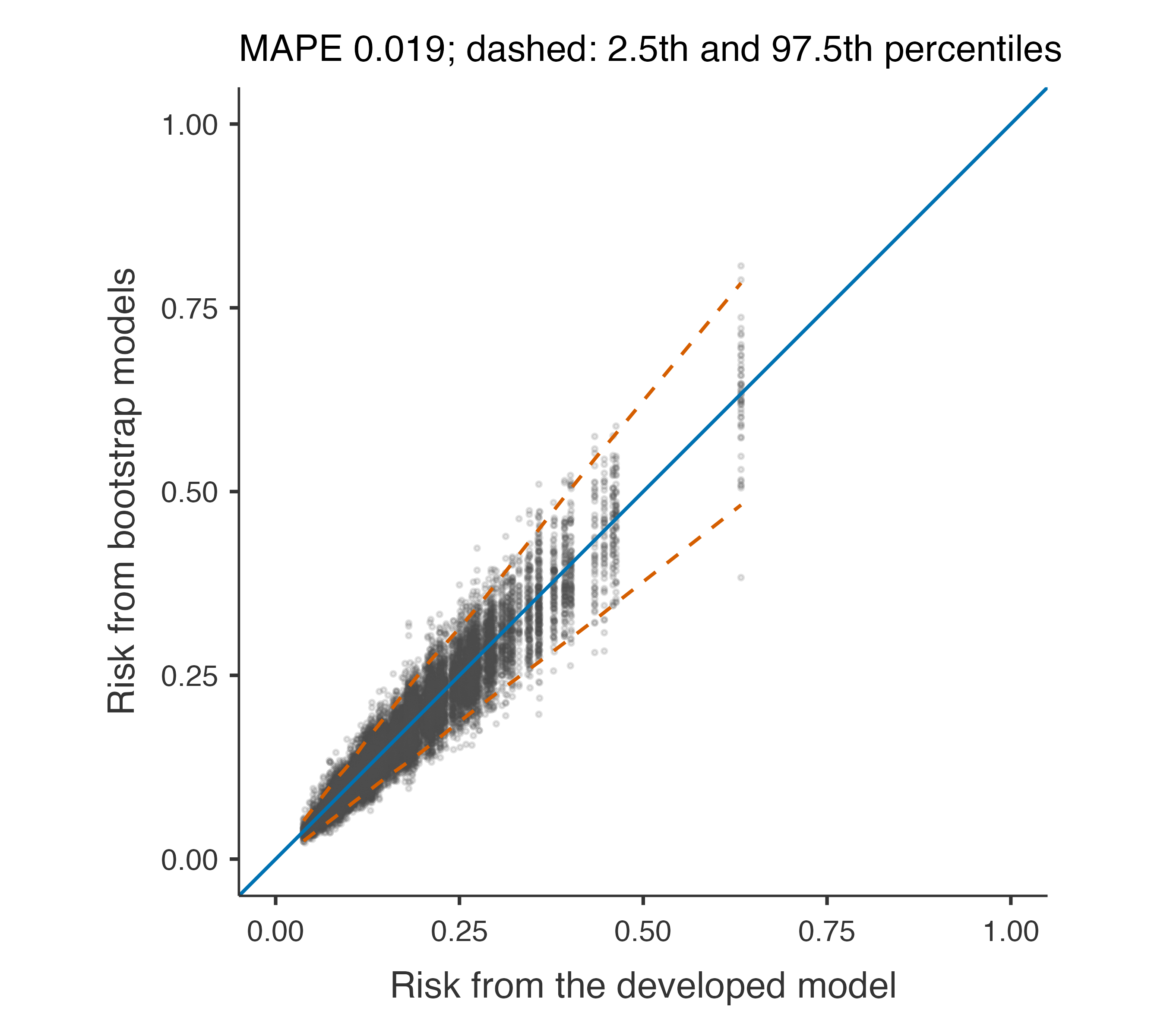

Step 5: shrinkage and stability

Stability and Shrinkage (Bootstrap)

Measure Value
Uniform shrinkage factor (mean bootstrap calibration slope) 0.9393
Heuristic shrinkage factor (van Houwelingen) 0.9202
Mean absolute prediction error (MAPE) 0.0188
Largest individual absolute prediction error 0.0708
Note. A shrinkage factor well below 1 (e.g. < 0.9) signals overfitting: the coefficients would need to be shrunk towards 0. MAPE: average absolute difference between an individual's risk from the developed model and from models developed in bootstrap samples (Riley & Collins 2023).

The uniform shrinkage factor, 0.939, is the bootstrap calibration slope: multiplying the coefficients by it would remove the expected overfitting. Above 0.9 it is acceptable. The mean absolute prediction error says that a patient’s predicted risk differs on average by 1.9 percentage points between models developed in bootstrap samples of the same size (Riley and Collins 2023); the instability plot shows it patient by patient.

Step 6: was the sample large enough?

Sample Size Adequacy (Riley et al. 2020)

Criterion Required N Required events Events per parameter
1. Shrinkage factor ≥ 0.9 1934 302.1 30.21
2. Optimism in Nagelkerke R² ≤ 0.05 333 52.0 5.20
3. Overall risk within ± 0.05 203 31.7 3.17
Minimum required 1934 302.1 30.21
This development data 2292 358.0 35.80
Note. Candidate parameters (excluding the intercept): 10; outcome proportion: 0.156; anticipated Cox–Snell R²: 0.045 (optimism-corrected, this model).
Note. The development data meet the minimum sample size.

With the model’s own optimism-corrected Cox–Snell R², the criteria of Riley et al. (2020) require 1934 patients (driven by the shrinkage criterion); the data have 2292. The data are sufficient, but not by much: a model with many more candidate parameters would need penalisation or more data.

Step 7: clinical utility

Classification — Counts

Data set Threshold TP FP FN TN
Development 0.200 150 397 208 1537

Classification — Accuracy

95% CI
Data set Measure Estimate Lower Upper
Development Sensitivity 41.9 % 36.9 % 47.1 %
Specificity 79.5 % 77.6 % 81.2 %
PPV 27.4 % 23.9 % 31.3 %
NPV 88.1 % 86.5 % 89.5 %
Accuracy 73.6 % 71.8 % 75.4 %

At a risk threshold of 20% — treat patients whose 10-year risk is above 20% — the model identifies 42% of the patients who will have an event (sensitivity), and 27% of those treated would have had an event (positive predictive value).

Net Benefit

Data set Threshold Model Treat all Gain Interventions avoided per 100
Development 0.0500 0.1127 0.1118 0.0009 1.66
0.1000 0.0737 0.0624 0.0113 10.17
0.2000 0.0221 -0.0548 0.0221 30.76
Note. Net benefit = true positives/N − false positives/N × t/(1 − t), at threshold t. Gain: over the better of treating all and treating none. Interventions avoided per 100: fewer false positives than treating all, at the same benefit.

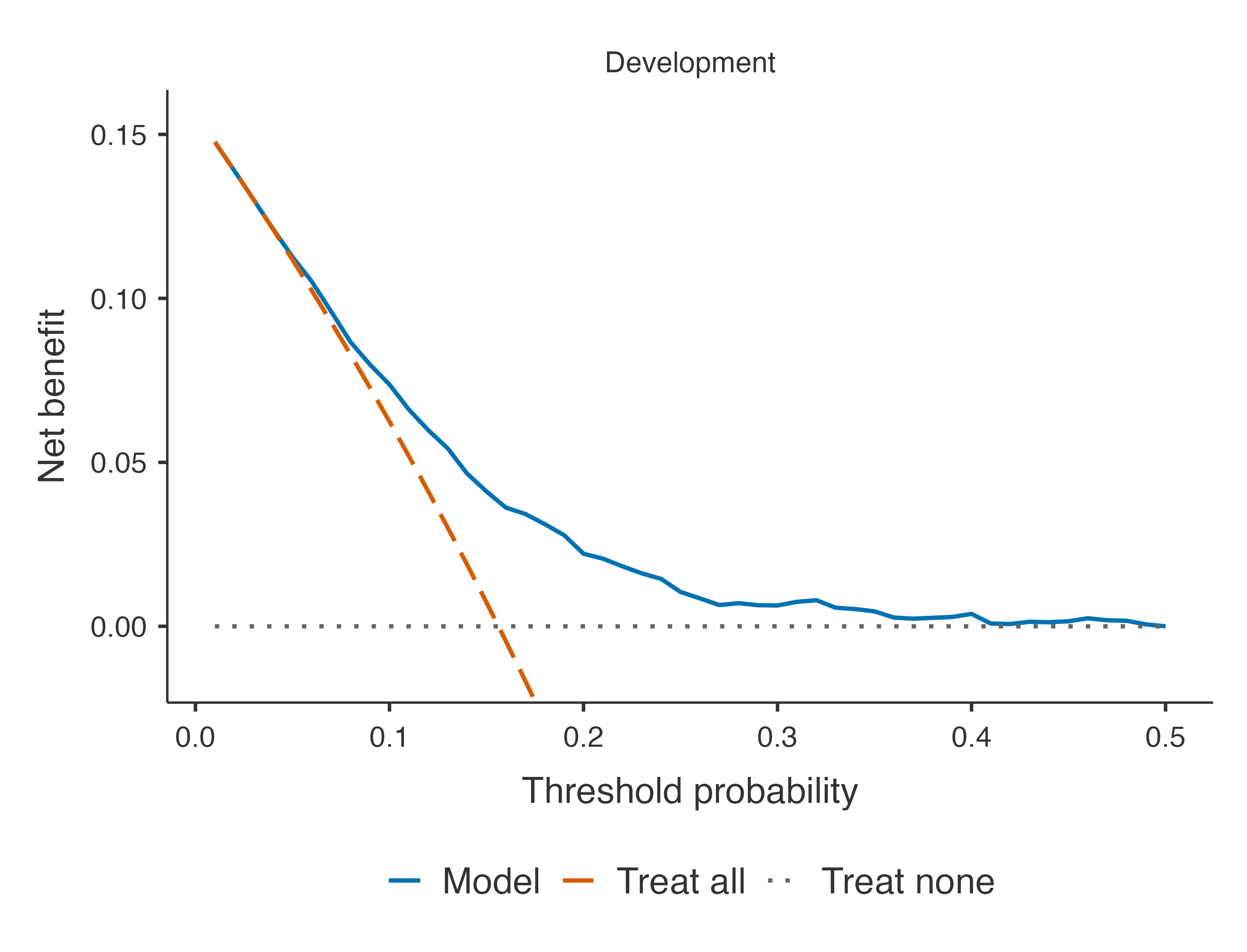

The decision curve compares using the model with treating everyone and treating no one. From thresholds of about 6% the model has a clearly higher net benefit than treating all; at 20% it avoids 31 unnecessary treatments per 100 patients compared with treating everyone, at the same benefit. At lower thresholds treating everyone is about as good: a clinician who would treat at such a low risk does not need the model.

Step 8: the equation

log-odds(event10 = yes) =
    -6.8306
    + 0.17792 × [sbp]
    + 0.23814 × [chol]
    + 0.018822 × [bmi]
    + 0.0101 × [age]
    − 0.037355 × [age']
    + 0.24268 × [age'']
    + 0.46514 × [sex: male]
    + 0.1121 × [smoking: former]
    + 0.7847 × [smoking: current]
    + 0.7797 × [diabetes: yes]

risk = 1 / (1 + exp(−log-odds))

[sbp] = sbp / 10  (per 10 units)

Spline of age, knots t1..t4 = 44, 56, 64, 77
  [age'] ... : ((x − tj)₊³ − (x − t3)₊³ (t4 − tj)/(t4 − t3) + (x − t4)₊³ (t3 − tj)/(t4 − t3)) / (t4 − t1)²,  j = 1..2

[sex: level] = 1 if sex is that level, else 0 (reference: female)

[smoking: level] = 1 if smoking is that level, else 0 (reference: never)

[diabetes: level] = 1 if diabetes is that level, else 0 (reference: no)

The equation, with the spline formula and the coding of every predictor, is what a paper must report so that others can compute the risk (Collins et al. 2024). Export model (JSON), under Save and Explain, writes the same model as a file that Validate a Published Model reads (see published models). Save to the data adds the predicted risk and the linear predictor as new columns of the spreadsheet.
